ASME/ANSI LONG ELBOW |
|
Unit:mm |
|
|
|
|
|
|
|
|
|
Nominal
tobe size |
Outside diameter
D |

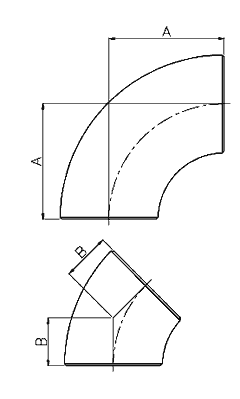

Length (Center-End) |
90°Elbow
A |
45°Elbow
B |
| 1/2 |
0.84 |
1.50 |
0.62 |
| 3/4 |
1.05 |
1.12 , 1.50 |
0.44 , 0.75 |
| 1 |
1.32 |
1.50 |
0.88 |
| 1-1/4 |
1.66 |
1.88 |
1.00 |
| 1-1/2 |
1.90 |
2.25 |
1.12 |
| 2 |
2.38 |
3.00 |
1.38 |
| 2-1/2 |
2.88 |
3.75 |
1.75 |
| 3 |
3.50 |
4.50 |
2.00 |
| 3-1/2 |
4.00 |
5.25 |
2.25 |
| 4 |
4.50 |
6.00 |
2.50 |
| 5 |
5.56 |
7.50 |
3.12 |
| 6 |
6.62 |
9.00 |
3.75 |
| 8 |
8.62 |
12.00 |
5.00 |
| 10 |
10.75 |
15.00 |
6.25 |
| 12 |
12.75 |
18.00 |
7.50 |
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
